Overview

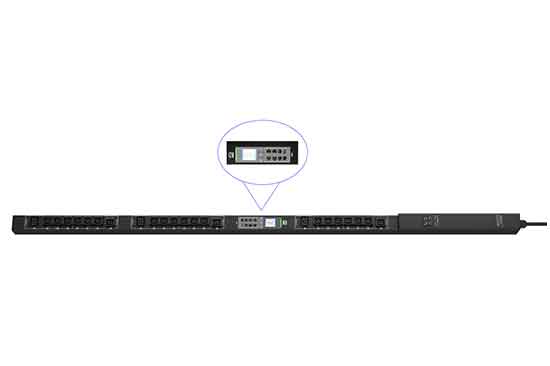

MPDU Pro is the latest flagship intelligent PDU introduced by CLEVER Electronic. It inherits the innovative fully modular design from the classic MPDU family. The output module supports hot-swapping under no-load condi-tion, and the main control module supports fully hot-swap operation.

    HD LCD/RGB status indicator

    1、2.0” colored HD LCD.2、RGB indicator shows multiple PDU working status.

    Replaceable output socket module

    Socket module can be replaced without power interruption to the rest of the PDU to facilitate socket type changes or PDU function upgrades.

    Compact structure design

    Compact body size and low profile hydraulic circuit breaker help to save rack space and promotes better airflow.

    Screw free hot swap controller

    1、Screw-free hot-swap controller, easier field maintenance.2、PC injected material ensures better touching safety.3、Large buttons, intuitive display UI, easy for local operation

    Patented socket retentio

    1、Patented anti-fall socket.2、Effectively prevent device accidental detachment.

    Advanced communication protocols

    Multiple advanced communication protocols supported, allowing for efficient, flexible and secure PDU parameters extraction.

    Comprehensive rack environ-ment monitoring

    Standard T/Hx2, Doorx1 sensor ports, extend -able to water leakage/smoke/air flow sensors etc.

    Flexible installation options

    Tool-less or standard bracket installation as options.

    Flexible color coding

    Flexible color customization for easy PDU circuit and phase identification, and load balancing deployment.

    Cascading

    1、 Network cascading 1 master with 9 slaves.2、Modbus cascading 1 master with 32 slaves.

    Model Categary Rack Space Input Voltage Derated AMP Input Plug Outlet Types
    PFIA-131-0800 总监测型 OU 230V 32A IEC 60309 32A 8 x C13
    PFGA-134-0800 总监测型 OU 230V 32A IEC 60309 32A 8 x GB10A
    PZIA-130-1806 总监测型 OU 230V 32A IEC 60309 32A 18 x C13 + 6 x C19
    PZIA-160-1806 总监测型 OU 230V 63A IEC 60309 32A 18 x C13 + 6 x C19
    PZIA-330-1806 总监测 OU 380V 3×32A IEC 60309 3×32A 18 x C13 + 6 x C19
    PZIA-130-2004 总监测 OU 230V 32A IEC 60309 32A 20 x C13 + 4 x C19
    PZIA-160-2004 总监测 OU 230V 63A IEC 60309 63A 20 x C13 + 4 x C19
    PZIA-330-2103 总监测 OU 230V 3×32A IEC 60309 3×32A 21 x C13 + 3 x C19
    PFIB-131-0800 单元监测型 OU 230V 32A IEC 60309 32A 8 x C13
    PFGB-134-0800 单元监测型 OU 230V 32A IEC 60309 32A 8 x IEC GB10A
    PZIB-130-1806 单元监测型 OU 230V 32A IEC 60309 32A 18 x IEC C13＋6×IEC C19
    PZIB-160-1806 单元监测型 OU 230V 63A IEC 60309 63A 18 x IEC C13＋6×IEC C19
    PZIB-330-1806 单元监测型 OU 230V 3×32A IEC 60309 3×32A 18 x IEC C13＋6×IEC C19
    PFIC-131-0800 总监测+单元控制型 OU 230V 32A IEC 60309 32A 18 x C13
    PFGC-134-0800 总监测+单元控制型 OU 230V 32A IEC 60309 32A 18 x IEC GB10A
    PZIC-130-1806 总监测+单元控制型 OU 230V 32A IEC 60309 32A 18 x IEC C13＋6×IEC C19
    PZIC-160-1806 总监测+单元控制型 OU 230V 63A IEC 60309 63A 18 x IEC C13＋6×IEC C19
    PZIC-330-1806 总监测+单元控制型 OU 380V 3×32A IEC 60309 3×32A 18 x IEC C13＋6×IEC C19
    PZID-130-2004 单元监测控制型 OU 230V 32A IEC 60309 32A 20 x C13 + 4 x C19
    PZID-160-2004 单元监测控制型 OU 230V 63A IEC 60309 63A 20 x C13 + 4 x C19
    PZID-330-2103 单元监测控制型 OU 380V 3×32A IEC 60309 32A 21 x C13 + 3 x C19
