OmniAccess Stellar AP1301

Home ProductsOmniAccess Stellar AP1301

Reliable, secure wireless capacity for modern workplaces and IoT networks.

The OmniAccess Stellar AP1301 is a dual-radio indoor 802.11ax access point designed for dense client environments, voice and video traffic, and IoT-connected enterprises. It combines Wi-Fi 6 efficiency distributed control, secure access, application visibility, cloud or on-premises management, and simple cluster deployment.

Next-Generation Wi-Fi 6 Performance

• Dual-radio 2×2 Wi-Fi 6 (802.11ax) architecture

• Up to 1.77 Gbps aggregate wireless throughput

• Optimized for high-density enterprise environments

• Delivers lower latency and higher network efficiency

High-Capacity Wireless Connectivity

• Supports up to 512 concurrent client devices

• OFDMA and MU-MIMO maximize airtime utilization

• 1024-QAM increases peak data rates by up to 25%

• BSS Coloring minimizes interference in dense deployments

Enterprise-Grade Security

• WPA3 Enterprise and Personal security

• IEEE 802.1X authentication support

• Built-in ACL and captive portal

• Secure guest access and Unified Access policy enforcement

Flexible Deployment & Management

• Cloud-managed via OmniVista Cirrus

• On-premises management with OmniVista 2500

• Standalone Wi-Fi Express cluster mode

• Zero-touch provisioning for rapid deployment

One Platform, Three Operating Models

A single software image support cloud-managed, on-premises and cluster-based deployments, reducing operational fragmentation.

OmniVista Cirrus

Cloud-based management with scalable deployment, analytics, secure authentication, and policy enforcement.

OmniVista 2500NMS

On-premises management for large deployments, including RF management, heatmaps, UPAM, DPI and intrusion protection.

Wi-Fi Express Cluster

Web-managed cluster architecture for small and medium environments. One cluster supports up to 255 APs, with automatic configuration propagation.

Zero-touch Provisioning

Supports rapid rollout through OmniVista platforms and secure provisioning with OXO Connect R2.

Core Product Specifications

Review key specifications to identify the right switch for your network deployment.

Category Specification
AP Type Indoor dual-radio Wi-Fi 6 access point
Radios 5 GHz 802.11ax 2×2:2 and 2.4 GHz 802.11ax 2×2:2
Maximum Radio Rates Up to 1.2 Gbps at 5 GHz and 574 Mbps at 2.4 GHz
Frequency Bands 2.400–2.4835 GHz; 5.150–5.250 GHz; 5.250–5.350 GHz; 5.470–5.725 GHz; 5.725–5.850 GHz, subject to regulatory domain
Channel Width 20, 40 and 80 MHz
Maximum Conducted Transmit Power 21 dBm on 2.4 GHz and 21 dBm on 5 GHz, limited by local regulations
Interfaces 2 × 10/100/1000Base-T autosensing RJ-45 with 802.3af PoE and 802.3az EEE; 1 × USB 2.0 Type-C; reset button
Antenna Integrated omnidirectional 2×2:2 antennas with maximum gain of 3.3 dBi on both bands
Power 48 V DC nominal ±5% or IEEE 802.3af PoE; DC has priority when both sources are connected
Maximum Power Consumption 13.1 W using IEEE 802.3af PoE, unrestricted functionality
Capacity Up to 8 SSIDs per radio, 16 total; up to 512 associated client devices
Dimensions 180 × 180 × 36 mm
Weight 574 g excluding packing and accessories
Operating Environment 0°C to 45°C; 5% to 95% non-condensing humidity
Storage / Transport -40°C to 70°C
Mounting Ceiling or wall mounting; mounting kit ordered separately
Reliability MTBF 1, 118, 457 hours at 25°C
Warranty Hardware Limited Lifetime Warranty

Technical Datasheet

Download the official technical datasheet for complete product information.

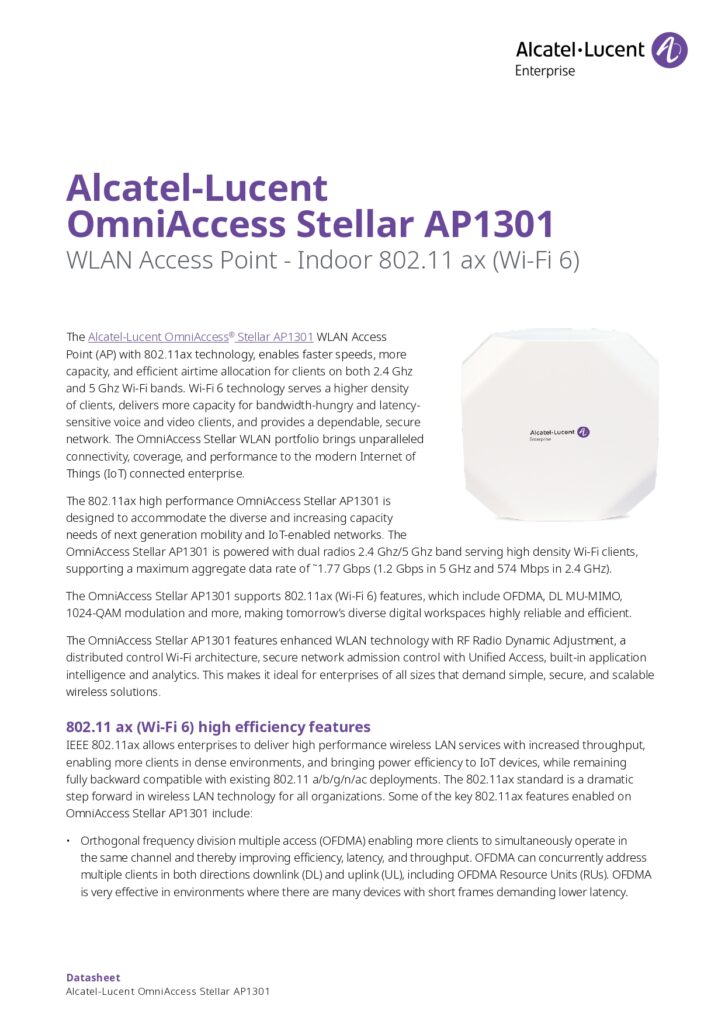

Alcatel-Lucent OmniAccess Stellar AP1301 Product Datasheet

Download
